warranty : 1YEAR
customized support : OEM, ODM
Place of Origin : Hunan, China
Brand Name : changde
Model Number : LXSG-8D-25D
Product name : Single jet dry type cold drinking water water meter
Color : Blue,gray
Size : DN8~DN25
Standard : ISO 4064 ClassB
Max temperature : T30
Max Pressure : 1.0Mpa
Protection class : IP65/IP67/IP68
Installation : Horizonal
Style : Single jet

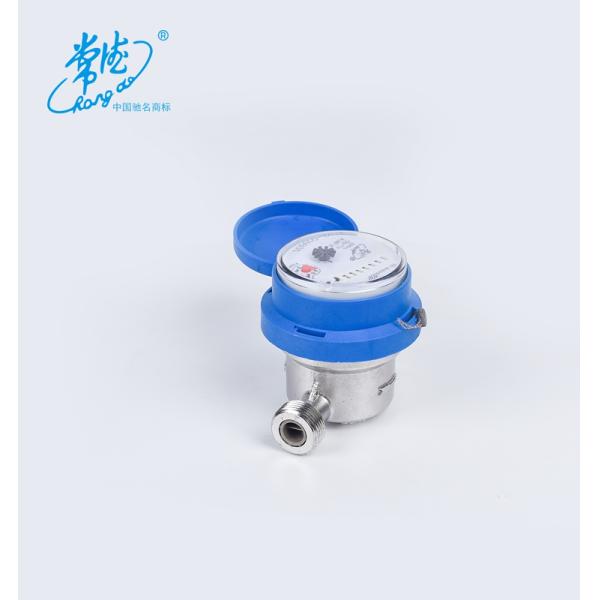

Brass Body Single Jet Russian Water Meter Domestic Meters
Single jet Dry type cold water meter (LXSG-8D-25D)
Feature:
1.This type water meter with the characters of small in size,light in weight,good look design,easy reading and etc.
2.The meters conform to ISO4064 standard class B.
3. Dry register and register with 5 or 8 number roller.
4. Brass body or plastic body, for optional
5. Counter type: wet type and magnetic drive dry type
6. The dry type counter can be rotated in 360 angle, keep a clear reading in a long term service and magnetic interference.
7.Brass body or Nickle coated body for optional.
| DN (mm)
| T | PN (Bar) | Material |
| 15 | T50 | 10
| brass |
| 20 | T50 | 10
| brass |
| 25 | T50 | 10 | brass |
Length :110mm or 165mm for option.
Pulse output for option.

Working condition(s):
Water temperature 0.1~30℃, working pressure≤1MPa.
Figurative diagram:

Shape dimension & weight:

Main technical parameters & measurement range:

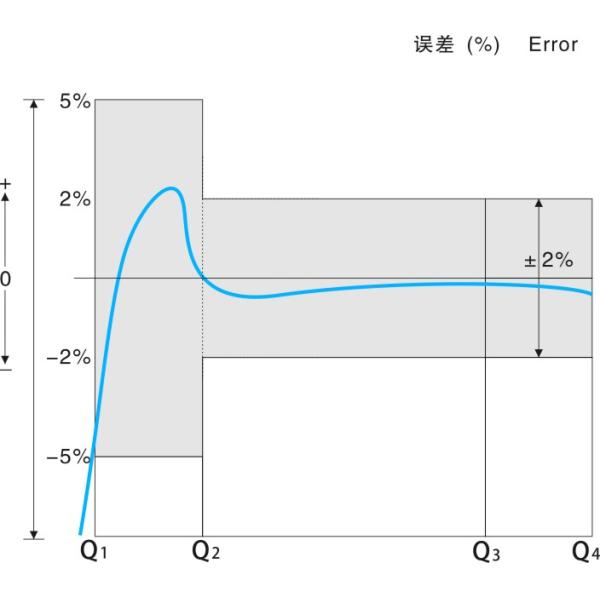

Indication allowable error:
Low region max. allowable error:
From Q min inclusive up to but excluding Qt is±5%.
High region max. allowable error:
From Qt inclusive up to and including Q max is±2%.

Pressure Loss Curve










For more info,please contact me
Kelly Qi: 0086 18673208584 (wechat/skype)
|
|
